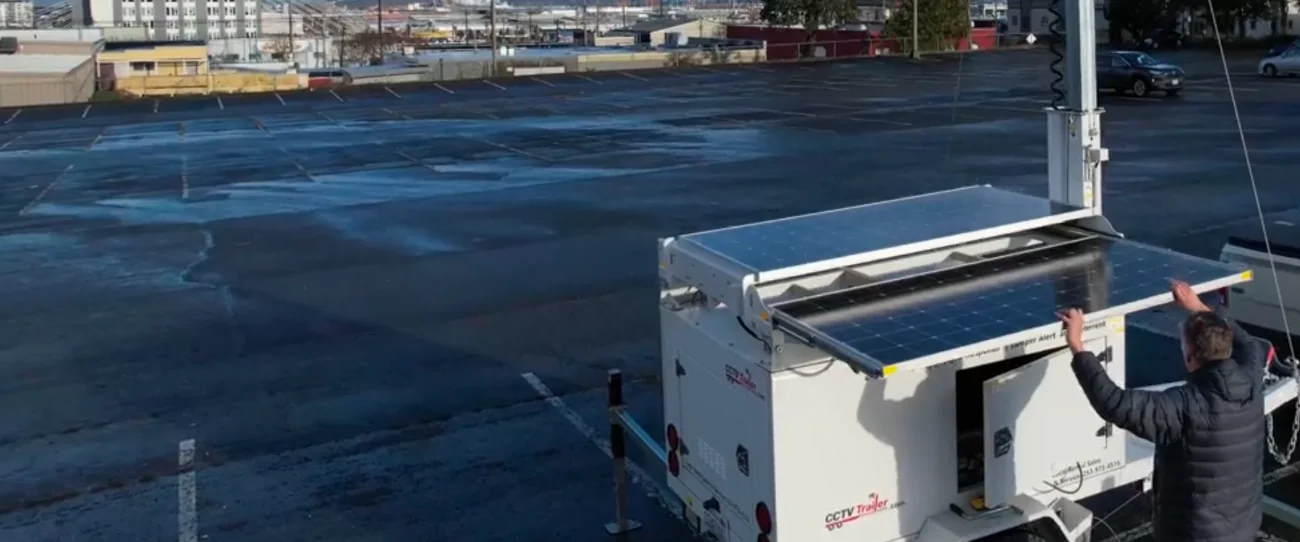

100% Standalone Power System
Deploy security anywhere in Washington State. Our hybrid power system keeps cameras running through the long Pacific Northwest cloudy season with zero grid dependency.

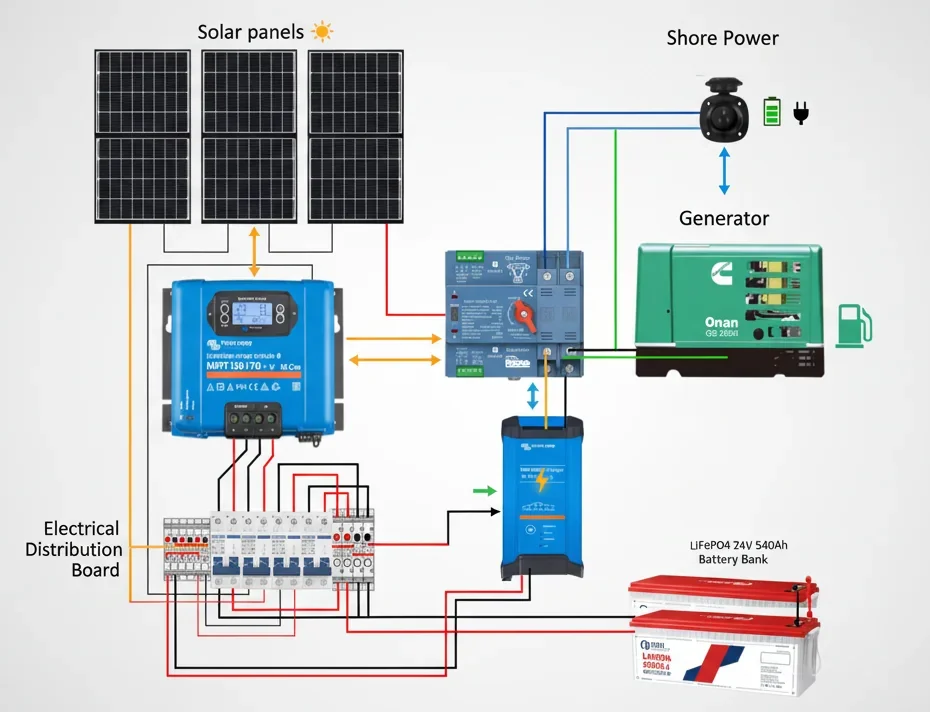

Get Standalone QuoteThree-Way Power System Built for Pacific Northwest Weather
Seattle's winters are overcast and Tacoma's rainy season runs long. The standalone power system keeps surveillance running without power lines or any other infrastructure your site may not have.
Primary: Solar Energy Harvesting
- • 2.4kW high-efficiency monocrystalline solar array
- • MPPT charge controller
- • Automatic maximum power point optimization
- • Zero emissions, silent operation
Secondary: Generator System (Essential for WA Climate)
- • 2.8kW Onan Cummins gasoline generator
- • Critical for the Pacific Northwest's long overcast season
- • 20-gallon fuel capacity (60+ days runtime)
- • Auto-start on low battery voltage
- • Remote monitoring and control
- • Keeps cameras running through Washington's long overcast stretches
Optional: Shore Power Connection
- • Available when convenient, never required
- • 110V/220V AC input compatibility
- • Automatic transfer switch (<10ms switchover)
- • Smart charging with float stage management
- • Reduces generator runtime when grid access exists
MPPT Solar Controller
- ModelVictron MPPT 150/70
- Max PV Input150V DC
- Charge Current70A
- Efficiency98%
- CommunicationBluetooth/VE.Direct
- ProtectionPV reverse polarity
Battery Management System
- Battery TypeLiFePO4 24V 540Ah
- Capacity14.4 kWh
- Runtime72-96 hours
- Cycle Life6000+ cycles
- BMS FeaturesCell balancing
- Temperature-20°C to 60°C
Power Distribution
- DC Output12V/24V/48V
- AC Inverter3000W pure sine
- Circuit ProtectionDC/AC breakers
- Surge Protection6000W peak
- Ground FaultGFCI protected
- MonitoringRemote/Local
Operational Benefits of Three-Way Power
Automatic Power Switchover
Automatic switchover between power sources keeps surveillance running without interruption
Pacific Northwest Weather Ready
Generator backup carries the trailer through Washington's long cloudy season, with no grid connection needed
Climate-Adaptive Charging
Temperature-compensated charging profiles optimize battery life in extreme conditions
Zero Infrastructure Required
Fully standalone operation - deploy anywhere without power lines, poles, or trenching. Grid connection optional, never necessary
Lower Operating Costs
Solar-first operation minimizes fuel costs while eliminating security guard expenses
Smart Load Management
Prioritizes critical systems and optimizes power distribution based on availability
Ideal for Washington State Deployments
Engineered specifically for Pacific Northwest conditions and locations
Construction Sites
- ✓ Remote job sites without power infrastructure
- ✓ New developments in Tacoma, Federal Way, Auburn
- ✓ Highway projects on I-5, I-90, SR-167
- ✓ Bridge construction over Puget Sound
Industrial Zones
- ✓ Port of Tacoma operations
- ✓ Seattle waterfront facilities
- ✓ Kent Valley warehouses
- ✓ Puyallup distribution centers
Event Venues
- ✓ Puyallup Fair (Washington State Fair)
- ✓ Tacoma Dome events
- ✓ Outdoor festivals in parks
- ✓ Temporary parking areas
Rural Properties
- ✓ Agricultural land in Pierce County
- ✓ Equipment storage yards
- ✓ Remote cell towers
- ✓ Undeveloped land parcels
Emergency Response
- ✓ Wildfire monitoring zones
- ✓ Flood-prone areas
- ✓ Disaster recovery sites
- ✓ Critical infrastructure protection
Government Facilities
- ✓ JBLM perimeter areas
- ✓ Municipal utility sites
- ✓ Public works projects
- ✓ Transportation corridors
Built to Handle Washington Weather Extremes
Rainy Season Performance
The Puget Sound region gets a lot of rain, especially from fall through spring. When solar output drops, the generator takes over and the trailer keeps running.
- November-March: Generator fills the gaps when solar output is low
- April-October: Solar carries most of the load
- Year-round: Automatic switchover between power sources
Temperature Adaptability
Summers bring heat waves and winters bring freezing nights. The battery management system keeps the batteries performing across that whole range.
- Summer: Cooling fans prevent overheating
- Winter: Insulated enclosure maintains battery temp
- All seasons: Temperature-compensated charging
Deploy Anywhere - No Grid Required
Our standalone power system keeps cameras recording at remote construction sites and rural properties across Washington State. Contact us to talk through your location.
GET STANDALONE QUOTE
